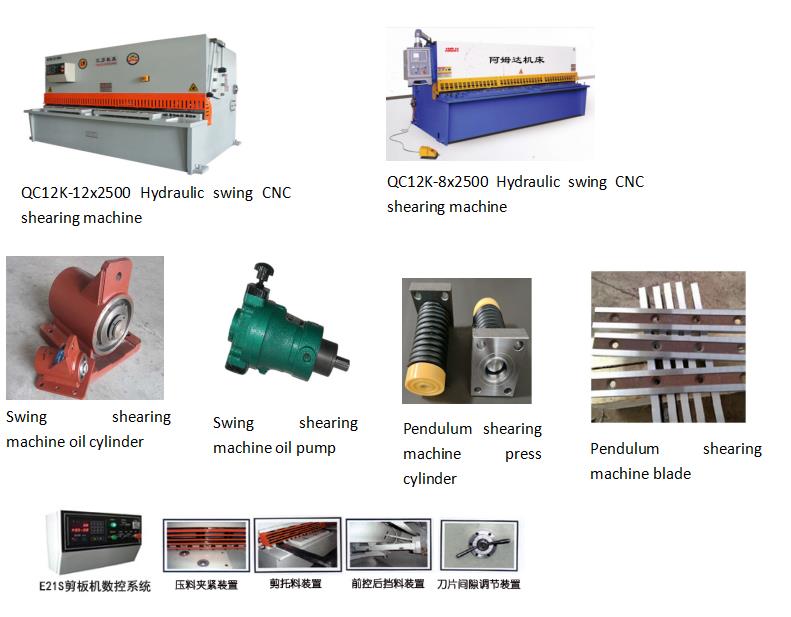

QC12Y Hydraulic Swing-type Digital Readout Plate Shear
Send Email
Performance and Features:
1. Adopting a fully welded steel structure, it has sufficient strength and rigidity.
2. Hydraulic transmission system, safe and reliable operation, beautiful appearance.
3. Equipped with a fast and flexible gap adjustment mechanism, it has high cutting accuracy.
4. Equipped with a lighting alignment device for easy marking and cutting.
5. The size and cutting frequency of the rear material have E21S CNC system and ball screw device.
6. The machine tool is equipped with safety barriers on the left, right, and back, and the electrical cabinet is equipped with door opening and power-off devices, as well as emergency switch devices at the front and back, with protective covers and foot switches to ensure safe operation during work.
Technical parameter table of QC12K/Y hydraulic swing CNC shearing machine
Product specifications | External dimensions | Can be cut Plate thickness (mm) | Can be cut Board width (mm) | Plate strength Newton | shear angle | Number of trips/minute | Rear blocking distance(mm) | electric machinery power (kw) | weight |
4×2500 | 2990×1650×1620 | 4 | 2500 | ≤450 | 1.50 | 18 | 500 | 5.5 | 5.2 |
4×3200 | 3990×1650×1620 | 4 | 3200 | ≤450 | 1.50 | 14 | 500 | 5.5 | 6 |
4×4000 | 4700×1900×1800 | 4 | 4000 | ≤450 | 1.50 | 12 | 500 | 7.5 | 7.9 |
4×5000 | 5700×2100×2200 | 4 | 5000 | ≤450 | 1.50 | 10 | 800 | 7.5 | 13.5 |
4×6000 | 6700×2200×2310 | 4 | 6000 | ≤450 | 1.50 | 8 | 800 | 7.5 | 16 |
4×7000 | 7680×2600×2800 | 4 | 7000 | ≤450 | 1.50 | 6 | 800 | 11 | 25 |
6×2500 | 3200×1700×1700 | 6 | 2500 | ≤450 | 1.50 | 16 | 500 | 7.5 | 5.5 |
6×3200 | 3900×1700×1700 | 6 | 3200 | ≤450 | 1.50 | 14 | 500 | 7.5 | 6.5 |
6×4000 | 4700×1900×1700 | 6 | 4000 | ≤450 | 1.50 | 12 | 500 | 7.5 | 8.5 |
6×5000 | 5700×2100×2100 | 6 | 5000 | ≤450 | 1.50 | 10 | 800 | 11 | 16.8 |
6×6000 | 6700×2200×2200 | 6 | 6000 | ≤450 | 1.50 | 8 | 800 | 11 | 20 |
6×7000 | 7680×2800×2900 | 6 | 7000 | ≤450 | 1.50 | 6 | 500 | 18.5 | 29 |
8×2500 | 3200×1700×1700 | 8 | 2500 | ≤450 | 1.50 | 14 | 500 | 7.5 | 6.8 |
8×3200 | 3900×1700×1700 | 8 | 3200 | ≤450 | 1.50 | 12 | 500 | 11 | 7.5 |
8×4000 | 4700×1800×1700 | 8 | 4000 | ≤450 | 1.50 | 10 | 500 | 11 | 9.2 |
8×5000 | 5700×2250×2300 | 8 | 5000 | ≤450 | 1.50 | 8 | 800 | 15 | 18.5 |
8×6000 | 6700×2400×2300 | 8 | 6000 | ≤450 | 1.50 | 6 | 800 | 15 | 23 |
10×2000 | 2680×1800×1850 | 10 | 2000 | ≤450 | 1.50 | 14 | 500 | 13 | 7 |
10×2500 | 3200×1800×1700 | 10 | 2500 | ≤450 | 1.50 | 12 | 500 | 15 | 7.5 |
10×3200 | 3900×2000×1900 | 10 | 3200 | ≤450 | 1.50 | 10 | 500 | 18.5 | 8.5 |
10×4000 | 4700×2200×2100 | 10 | 4000 | ≤450 | 1.50 | 8 | 800 | 18.5 | 10.5 |
10×5000 | 5700×2200×2200 | 10 | 5000 | ≤450 | 1.50 | 6 | 800 | 18.5 | 22 |
10×6000 | 6700×2500×2450 | 10 | 6000 | ≤450 | 1.50 | 6 | 800 | 18.5 | 26 |
12×2500 | 3200×2150×2200 | 12 | 2500 | ≤450 | 1.40 | 11 | 600 | 18.5 | 10.5 |
Note: If the parameters in this table do not match the machine tool data, the actual data of the machine tool should prevail. Our company reserves the right of final interpretation.
