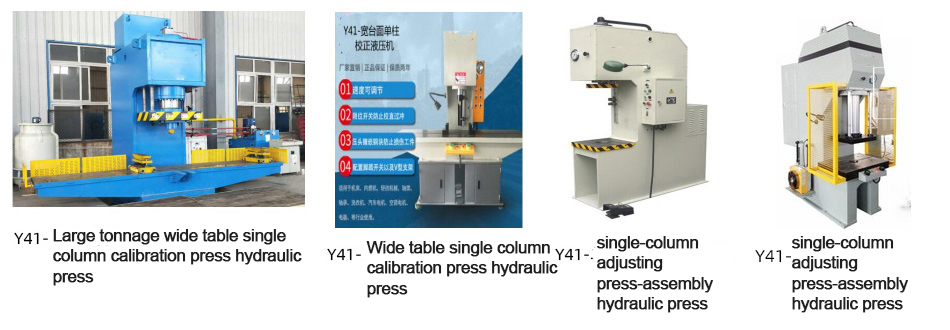

Y41 Single column correction and press mounting hydraulic press
Send Email
Performance characteristics:
This series of hydraulic press has a wide range of versatility and is suitable for the processing and molding of plastic materials, such as extrusion bending, folding, stretching, etc. At the same time, it is also suitable for pressing and molding of various plastic and powder products. In addition, it can also be used for correction, pressing and shaping of products.
Y41 Single column correction and press fitting hydraulic press parameters
Tonnage of single column hydraulic press | unit | Y41-25 | Y41-40 | Y41-63 | Y41-80 | Y41-100 | Y41-160 | Y41-200 | Y41-315 | Y41-500 |
nominal pressure | KN | 250 | 400 | 630 | 800 | 1000 | 1600 | 2000 | 3150 | 5000 |
Liquid working pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Maximum stroke of oil cylinder | mm | 350 | 360 | 300 | 300 | 400 | 400 | 400 | 400 | 500 |
Press the head to the opening height | mm | 500 | 500 | 550 | 550 | 600 | 600 | 600 | 700 | 800 |
Left and right dimensions of workbench | mm | 400 | 450 | 500 | 600 | 600 | 600 | 600 | 600 | 800 |
Front and rear dimensions of workbench | mm | 400 | 450 | 500 | 500 | 500 | 500 | 500 | 600 | 600 |
Deep throat | mm | 200 | 250 | 250 | 250 | 250 | 250 | 250 | 300 | 300 |
Downward speed | Mm/s | 16 | 20 | 22 | 22 | 22 | 20 | 20 | 15 | 15 |
return speed | Mm/s | 22 | 25 | 28 | 30 | 30 | 28 | 28 | 27 | 27 |
The height of the workbench from the ground | mm | 550 | 550 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
power | KW | 4 | 5.5 | 5.5 | 5.5 | 5.5 | 7.5 | 11 | 11 | 18.5 |
Equipment external dimensions | l | 700 | 700 | 800 | 800 | 800 | 900 | 900 | 900 | 1000 |
K | 850 | 900 | 1000 | 1100 | 1100 | 1100 | 1200 | 1300 | 1300 | |
H | 1500 | 1600 | 1750 | 1800 | 1850 | 1900 | 1900 | 2000 | 2000 | |
machine weight | 2000 | 2500 | 4800 | 5000 | 5500 | 6000 | 10000 | 15000 | 25000 |
Note: If the parameters in this table are inconsistent with the machine tool data, the actual data of the machine tool shall prevail. The Company reserves the right of final interpretation.
